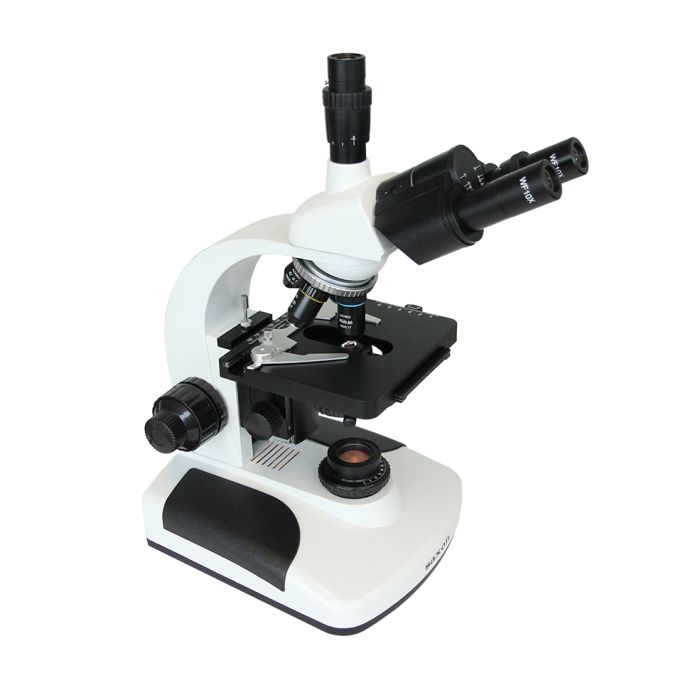

saxon RBT Researcher Biological Microscope 40x-1600x (NM11-4100II)

In stock
SKU
SAX-311009
Favourites Add to Favourites
RRP $1,299.00

The saxon RBT Researcher Biological Microscope can be used in a wide variety of settings where there is a need for the ability to magnify slides and take in closer views of objects.

Ideal for students, medical professionals and research scientists, the microscope has four different objective lens of 4x, 10x, 40x & 100x. Eyepieces provide additional 10x and 16x magnification, making it possible to use different lens and eyepiece combinations to get the perfect level of size enhancement.

You can hook the microscope up to a camera or video camera, and the microscope can be plugged into standard wall outlets.

The saxon RBT Researcher Biological Microscope features:

  • DIN Achromatic Objectives of 4x,10x,40xR,100x(R, Oil)
  • Wide field plane-scope eyepiece (WF10x & WF16x)
  • Magnification range of up to 1600x
  • Trinocular head inclining at 30º and 360º rotatable
  • Interpupillary Distance of 55-75mm
  • Double layer mechanical stage of 140X155mm with a moving range X-Y of 70X50mm Ø2-Ø30mm
  • Iris Diaphragm
  • Ø32 Filter
  • N.A. 1.25 ABBE Condenser
  • Coaxial Coarse And Fine Focusing Adjustable Mechanism
  • LED illumination
More Information
RRP Price $1,299.00
Brand saxon
Warranty Information 3-Years Limited Warranty
Eyepiece WF10x & WF16x
Magnification Range 40x, 64x, 100x, 160x, 400x, 640x, 1000x, 1600x
Objectives 4x, 10x, 40xR, 100xR
Field of View 18mm & 13mm
Illumination LED
Head Type Trinocular
Focus Coarse and Fine, Coaxial
Condenser 1.25 Abbe
Stage Type Fixed with Attached Mechanical Slide Holder
Stand Curved Arm
Power Supply 250v 10A Power cord
pdf
* You have to Login or Register to download this file
Write Your Own Review
You're reviewing:saxon RBT Researcher Biological Microscope 40x-1600x (NM11-4100II)
Your Rating
-

saxon WF10x, WF16x Eyepiece

These are brand new widefield WF10X and WF16X microscope eyepieces. They fit most common size microscopes. Give your microscope a boost with greater power & clarity at a fraction of the cost.

-

Filter lens (green, blue and yellow)

Microscope filters are used for both observation and photo microscopy. Green Filter can improve with the use of a green filter. Phase contrast objectives are also created to give the best phase images in green light. Blue Filter can provide a pale gray-blue hue to the field of view and is often used to balance the light created by tungsten or halogen microscope lights to balance out the colour of the microscopy light. Yellow filter is used to fine-tune the colour balance of tungsten and halogen microscope light sources for photomicrography with colour film.

-

Immersion oil

It can improve microscope resolution and magnification power by providing better connection between the observed sample and the lens. The oil is safe for the optics. It is easily removed without leaving any residue.

-

saxon adapter

The adapter can support AC powered of this microscope.

-

saxon CCD Linker

It's a microscope adapter for a C-mount-Camera.

-

saxon Eyepiece Linker

It can be used to connect eyepieces

-

saxon Dust Cover

Clear, vinyl dust covers for the protection of your microscopes.
