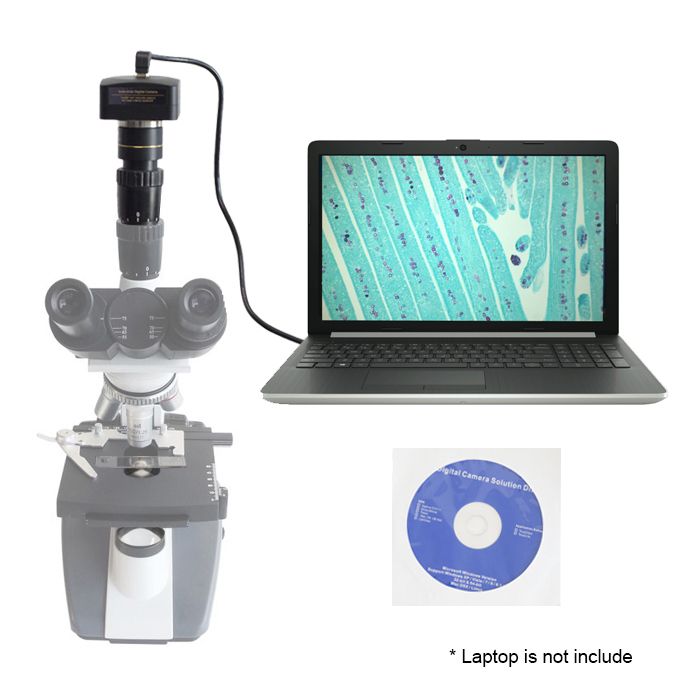

saxon 3 Megapixel Digital Microscope Camera
RRP $449.95
Hardware Specifications
| Image Pickup Device | Aptina Mt9T001 CMOS (Colour) |
| Scan Mode | Progressive |
| Max. Resolution | 2048 x 1536 (Approx. 3,200,000 pixels) |
| Sensor Size | 1/2" (6.55mm(H)x4.92mm(V), Diagonal 8.19mm) |
| Pixel Size | 3.2μm x 3.2μm |
| G Sensitivity | 1.0V/lux-sec (550nm) |
| Dynamic Range | 61dB |
| A/D Converter | 10-bit, 8-bit RGB to PC |
| SN Ratio | 43dB |
| Spectral Range | 380-560nm (with IR-filter) |
| Video Format and Frame Rate | 8fps@2048x1536, 22fps@1024x768, 43fps@680x510 |
| Binning | 1x1, 2x2, 3x3 |
| Exposure | 0.128ms~2000ms, ROI Auto & Manual |
| White Balance | ROI White Balance/Manual Temp-Tint Adjustment |
| Colour Rendering Technique | Ultra Fine Colour Engine |
| Peak Quantum Efficiency | 35% |
| Radout Noise | N/A |
| Extinction Ratio | N/A |
| Smear | N/A |
| Capture/Control API | Native C/C++ SDK, DirectShow, Twain |
| Recording System | Still Picture, Movie |
Optimum Operating Range
| Operating Temperature | -10°C ~ 50°C |
| Storage Temperature | -20°C ~ 60°C |
| Operating Humidity | 30~80%RH |
| Storage Humidity | 10~60%RH |
| Power Supply | DC 5V over PC USB Port |
Software Requirements
| Operating System |
Microsoft Windows 7/8/10 |
| PC Requirements | CPU: Equal to Intel Core2 2.8GHz or higher Memory: 2GB or more USB Port: USB2.0 High-speed port Display: 17" or larger CD drive for installation |
| RRP Price | $449.95 |
|---|---|
| Brand | saxon |
| Eyepiece | N/A |
| Magnification Range | N/A |
| Objectives | N/A |
| Illumination | N/A |
| Head Type | N/A |
| Focus | N/A |
| Condenser | N/A |
| Stage Type | N/A |
| Stand | N/A |
Write Your Own Review
 |
saxon USB Cable It can be used to connect with computer. |
 |
saxon Digital Camera Solution Disk The user-friendly software is compatible with Windows XP/Vista/7/8/10, Mac OS X, and Linux. |
 |
saxon Micrometer Slides It can be used to measure the objects and adjust the field of view. |
 |
saxon Adapter It fits the mounting size is 30mm and 30.5mm. |
